Q’Straint QLK Docking System Kit w/Base Mount and Manual Release | Q04S172
$1,229.50
Description

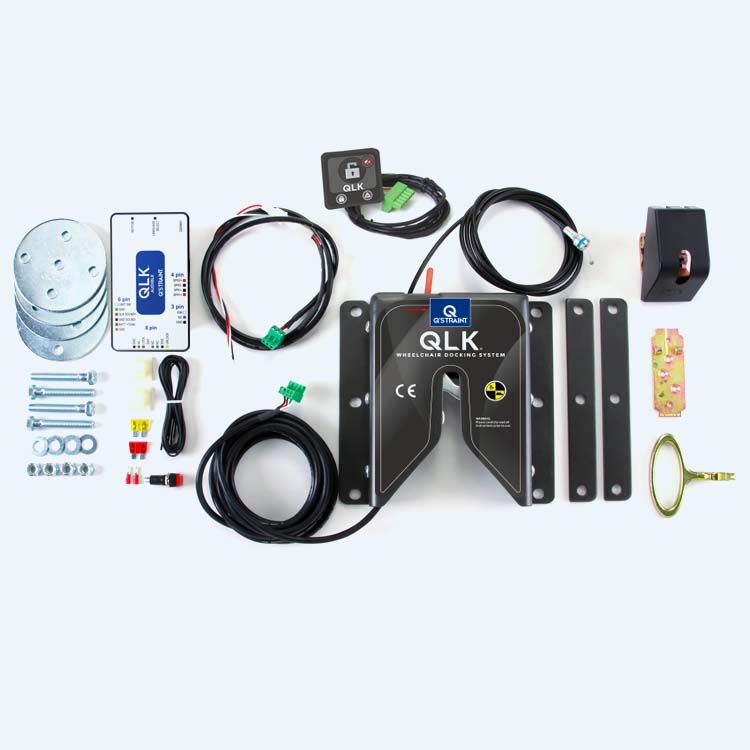

QLK Docking System Kit with Base Mount and Manual Release
Includes:
- (1) QLK Docking System (Q041000)
- (1) QLK Dash Control (QS10131)
- (1) Electronic Control Module (ECM) (QS01114)
- (1) Manual Release (Q04F0013)
- (1) Auxiliary Release Switch
- (2) Wire Clips
- (1) Mounting Hardware Kit
SKU: Q04S172
DOCK. DRIVE. DISCOVER.
WARRANTY
FEATURES
EXTENSIVE CRASH TESTING
The first and only docking system that meets the higher WC/19 wheelchair load requirements. Also, the only system tested Forward, Rearward, and Sideways.
SLIM, FLEXIBLE DASH CONTROL
Compact design that blends into modern vehicle interiors. Features a larger touch area and embedded LED indicators to show system status.
ADVANCED STABILIZER
Our unique Advanced Stabilizer allows the QLK to be installed in the driver position. The stabilizer attaches easily to the QLK cover and improves stability.
SMART ECMS
Audible ECM option provides multilingual feedback and seamless remote pairing lets you pair controllers without the need for additional receivers.
LOWEST/HIGHEST CLEARANCE
Optional base mounts allow for the docking system to be mounted from 1.5″ (38mm) all the way up to to 4″ (100mm). An optional 1.5″ floor mounts allows previously un-dockable lower ground clearance wheelchairs such as the Jazzy Select 6 or Ultra Elite, to be easily secured.
PLUG & PLAY SERVICE
Quick connectors and a removable cover allow for faster maintenance and easier servicing. Screw terminals are easily removed for faster wire routing, and eliminates the need for any additional crimping or soldering.
REMOTE
Seamlessly pairs with your new or existing QLK docking system.
HEAT TREATED STEEL
All components are made of high-grade steel with eco-friendly coating, and each component (except for base mounts) is specially treated to increase strength and durability, reduce entry channel warping, and to prevent corrosion.
SMALLER FOOTPRINT
The QLK features a castor interference with shortened cover reducing the size by by 1.5″ (38mm) over the QLK-100, eliminating any castor interference.
FLUSH SURFACE WITH TAPERED CHANNEL
Eliminates snags and gives users a full 3/16″ (5mm) of additional bolt clearance. The tapered channel guides the user in, making it easier to dock.
OVER-TORQUE PROTECTION
Prevents system lockup if the internal hardware is accidentally over-torqued.
QLK MEETS OR EXCEEDS THE FOLLOWING STANDARDS AND REGULATIONS:
Fully ADA Compliant
FMVSS
CMVSS
SAE J2249
CSA Z604
AS2942
ISO 10542-1
Meets the requirements of WC18 & is compatible with WC19 wheelchairs.
Crash tested at 30mph/20g in forward, rearward and sideways-facing directions
FAQ
What is SKU Q04S172?
Q'Straint QLK Docking System Kit w/Base Mount and Manual Release | Q04S172 is sold here as SKU Q04S172 on WheelChairTieDowns.com. Use that part number when you call so we pull this exact item, not a lookalike.
How much does Q'Straint QLK Docking System Kit w/Base Mount and Manual Release | Q04S172 cost?
The live price is $1,229.50. That is the catalog price on this page. Call for fleet or carton counts.
Will Q'Straint QLK Docking System Kit w/Base Mount and Manual Release | Q04S172 ship to my shop?
Yes. WheelChairTieDowns.com ships SKU Q04S172 from Texas. In-stock orders typically leave the same or next business day. The cart shows shipping before you pay.
Can I return it if it is the wrong part?
Unused, resalable catalog items can be returned within 30 days. You pay return freight unless we shipped the wrong SKU. Custom-cut or used parts are not returnable.
Is this OEM or a generic copy?
Q'Straint QLK Docking System Kit w/Base Mount and Manual Release | Q04S172 (Q04S172) is the catalog part on this listing. Do not assume interchange if your application needs a different fitting, color, or pack size — match the SKU.
How do I order more than one?
Use the quantity box, or call with SKU Q04S172 for a pack or fleet count. Page price is per unit unless the title says otherwise.
