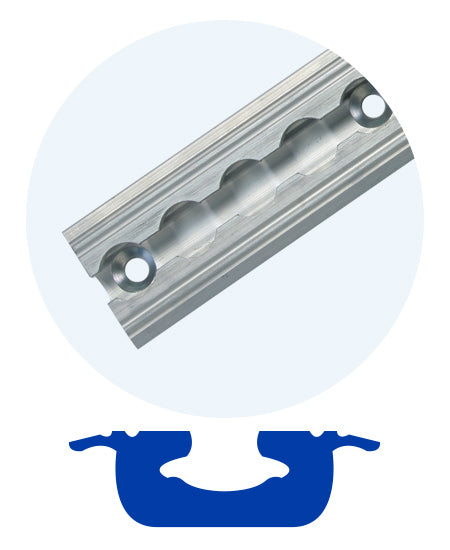

Omni L Track with 5/16″ holes Flange Series | 48″

Sure-Lok OMNI Flange Series Pre-Drilled L-Track provides flush-mount aluminum anchor tracks in 48″ length, certified OMNI-compatible for mixed Q’Straint/Sure-Lok retractor systems with 5/16″ countersunk holes every 4″ (102mm).

Length Options & Shipping:

KEY FEATURES:

• OMNI Approved: Tested/certified for Q’Straint + Sure-Lok retractors/belts.
• Flush Flange Profile: Ideal for coated floors; minimizes trip hazards.
• Pre-Drilled Pattern: 82° countersunk holes every 4″ for 5/16″ bolts.
• Corrosion-Resistant: 6061-T6 aluminum alloy for demanding fleets.
• Multi-Vehicle Use: School bus, paratransit, shuttle, minivan applications.

6061-T6 aluminum alloy flange L-Track (FE753NA048-04-3) features OMNI Approved certification for universal brand compatibility. 82° countersunk holes accept 5/16″ (8mm) bolts. Mounting hardware not included—pairs with FE201006 bolts.

Required Accessories:

Resources:

• Floor Anchorage Brochure
• Omni Brochure
• Omni L-Track Instructions
• FE753NA Product Spec Sheet

Standards Compliance:

• OMNI Certified (Q’Straint/Sure-Lok interoperability)
• FMVSS 210 (anchorages), SAE J2249
• ADA accessibility guidelines
