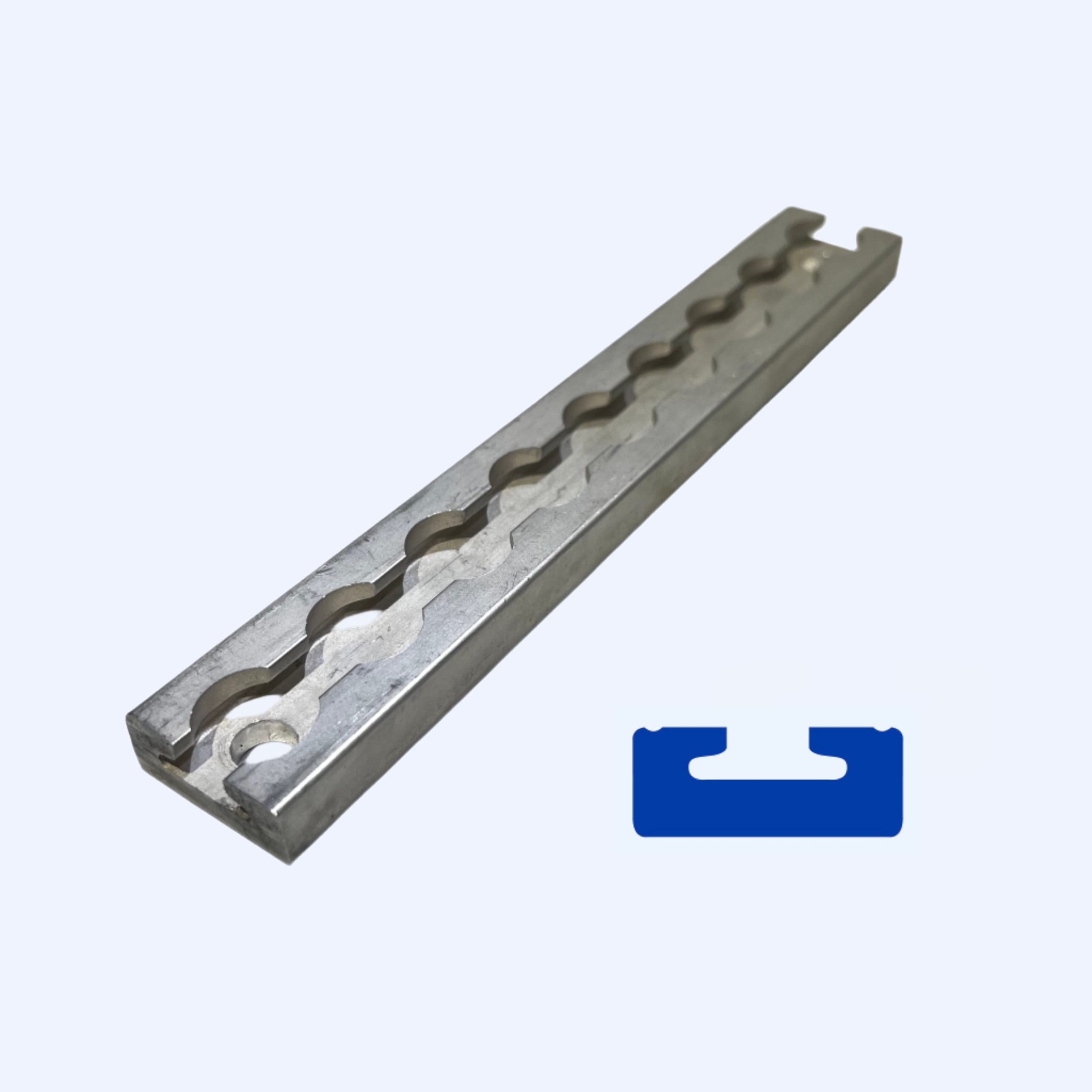

FE200762 | 9″ L-Track Section, Non-Flanged, with two 3/8″ Mounting Holes

Description

HD L-Track Section, Non-Flanged, with Two 3/8″ Mounting Holes, 9 Inches Long

Sure-Lok FE200762 HD L-Track Section (Non-Flanged) offers a compact 9″ fixed-position heavy-duty track with dual 3/8″ mounting holes, crafted from 7075-T6 aluminum for safety retractor anchors in transit and paratransit buses.

Key Specifications:

KEY FEATURES:

• Dual 3/8″ Holes: Oversized mounting for heavy-duty Grade 8 bolts.
• 7075-T6 Alloy: Superior strength vs. standard 6061 aluminum tracks.
• Non-Flanged Design: Ultra-low profile minimizes floor obstructions.
• Adjustable Positioning: 9″ length enables precise retractor alignment.
• Transit Optimized: Meets paratransit bus anchor spacing requirements.

This 9-inch non-flanged L-Track provides adjustable anchor positioning for track-fitting safety retractors in commercial vans and buses. The ultra-strong 7075-T6 aerospace-grade aluminum ensures maximum durability with two oversized 3/8″ mounting holes for heavy-duty securement applications.

Applications:

• Safety retractor fixed anchors (front/rear)
• Transit bus bulkhead mounting points
• Paratransit van permanent tie-downs
• Commercial shuttle securement stations

Required Accessories:

HD Track Section Comparison:

Standards Compliance:

• FMVSS 210 seat belt anchorages
• SAE J2249 wheelchair securement compatible
• ADA accessibility guidelines (with filler strips)
