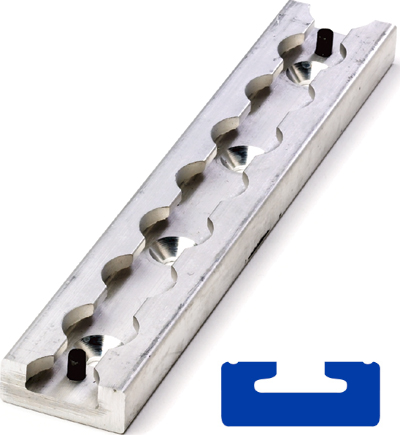

FE200761 | 8″ L-Track Section, Non-Flanged, with 1/4″ Countersunk Mounting Holes

Description

HD L-Track Section, Non-Flanged, with Four 1/4″ Countersunk Mounting Holes, 8 In. Long

Sure-Lok FE200761 HD L-Track Section (Non-Flanged) delivers an 8″ precision fixed-position heavy-duty track with four 1/4″ countersunk mounting holes, engineered from 7075-T6 aluminum alloy for safety anchors in transit and paratransit vehicles.

Key Specifications:

KEY FEATURES:

• Four Countersunk Holes: Multiple flush mounting options with FE201005 kit.
• 7075-T6 Construction: Aerospace-grade strength.
• Ultra-Low Profile: Non-flanged design eliminates floor protrusions.
• Retractor Optimized: Precise positioning for safety automatic retractors.
• Transit Grade: Built for salted roads and high-traffic commercial use.

This compact 8-inch non-flanged L-Track (0.8 lb) features superior corrosion resistance and four countersunk 1/4″ mounting holes for flush installation with FE201005 hardware. Provides stable adjustable anchor positioning for track-fitting safety retractors in buses and large commercial vans.

Applications:

• Fixed safety retractor mounting points
• Transit bus front/rear anchor stations
• Paratransit van permanent tie-downs
• Commercial shuttle bulkhead anchors

*** 7075-T6 aluminum is highly susceptible to stress corrosion cracking (SCC) and localized corrosion (pitting/exfoliation) in harsh environments, such as coastal or chloride-heavy, high moisture settings, due to its high zinc, copper, and magnesium content. While offering extreme strength for aerospace applications, T6 temper is prone to corrosion, often requiring protective coatings like anodizing. ***

Required Accessories:

HD Non-Flanged Comparison:

Standards Compliance:

• FMVSS 210 (seat belt anchorages)
• SAE J2249 (wheelchair securement compatible)
• ADA T302 walking surfaces (with filler strips)
